High Precision PCBA Solder Tester SMT Aoi Tester

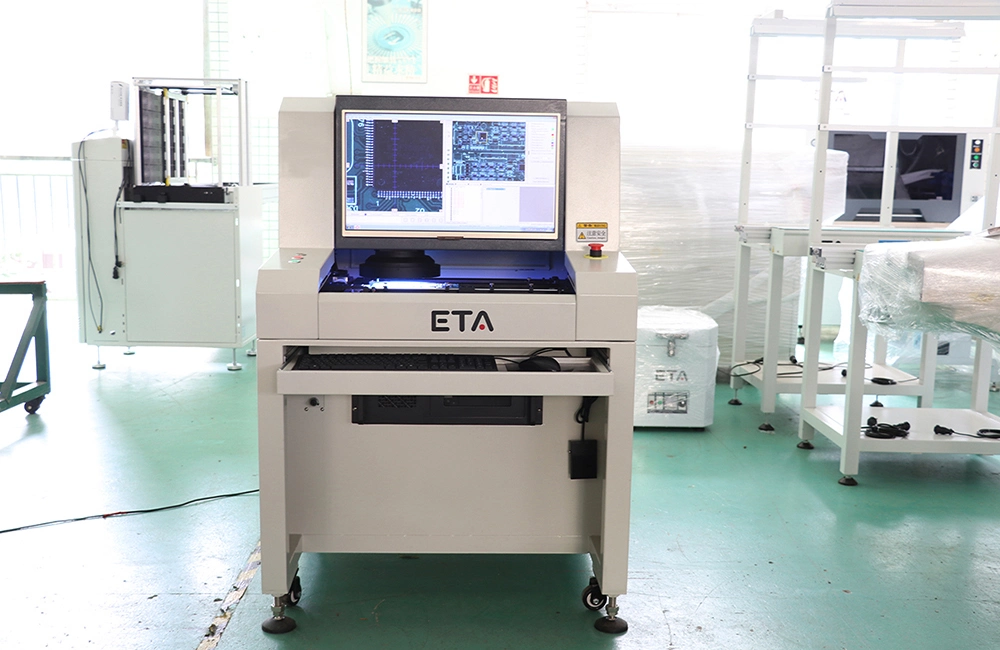

Product Introduction:ETA-515 is multi-function SMT AOI machine,imported Screw guide,high precision,the color change color 3CCD camera to accurately identify the various components of the total 01005 detection ability,CE standard of mechanical design and humanized, large pull type operation pallet, can be placed with PC

Featured Products


High Precision PCBA Soldering Tester SMT Aoi Testing Machine

Product Introduction:

ETA-515 is multi-function SMT AOI machine,imported Screw guide,high precision,the color change color 3CCD camera to accurately identify the various components of the total 01005 detection ability,CE standard of mechanical design and humanized, large pull type operation pallet, can be placed with PCB operator and other items, automatic induction eecure screen and turn plate automatically open to the use of more security equipment.
High Precision PCBA Soldering Tester SMT Aoi Testing Machine

Production Features:

1.Fast programming design,Multi program running,Multi application design,High precision,High NG output.
2.Automatic barcode reading,Intellectralized coaxial light design,Multi mark(Bad Mark included).
3.Seamless connection between SPC and AOI,take measures to avoid problem according to the feedbacks,control the quality in time.
4.Using coaxial four-level illumination to make the part in the best status of brightness and softness,
5.High precision intellectualized camera read the barcode auto matically,with high speed and clearer images.
6.Good stability(GR&R<10% @6 Sigma,CPK>1.33(Test deviation accuracy less than ±0.25mm.
7.Read 2D Barcode(laser&print).

High Precision PCBA Soldering Tester SMT Aoi Testing Machine

Specification:
ModelETA-515
Test BoardAfter Reflow Soldering
Test MethodTOC,Histogram,Match,Short,Other,Crest,Pin
Camera5M pixel intelligent digital industrial camera(option:5M camera)
Resolution/Range/Speed15um/Pixel FOV:38*31mm, Test speed<0.25sec/FOV
LightExtra bright RGB coaxial ring tower LED light(Color light)
Program ModeAuto CAD input,manual programming,component library
Remote ControlOffline programming,check and control remotely through network
Inspection ItemComponent test,soldering test
Special FunctionRead barcode,two sides of program test,multi board and multi progrma test
Mini Component15um:01005chip&0.3pitch IC
SPC and Program ControlStatistic and analysis of all test data,can output excel,word,txt file
Operation SystemWindows 7
Display Output22inch LCD,OK/NG signal,send data file to Repair station(option)
PCB Size50*50~430*330mm
PCB Thickness0.5 ~ 5mm
PCB WeightMax:3Kg
PCB Thickness0.3 ~ 5mm
PCB HeightTop:30mm,Bottom:60mm
Conveyor Height850 ~ 920mm
X/Y DriverAC servo driver,repeat accuracy 0.01mm
PowerAC220 50/60Hz,<0.5Kw
Weight520Kg
Dimension1070*900*1310mm
