------Introduction------
As a high performance chip shooter that applies two gantries equipped with 10 spindles per head as well as new
flying vision, the SM471 realizes a chip mounting speed of 75,000 CPH, the highest in the world among chip
shooters of the same class. In addition, it is applicable to 0402 chips to the largest
Δ 75,000 CPH(Optimum)Δ 2 Gantry x 10 Spindles/Head
Δ Applicable Parts : 0402 ~ 14mm(H 12mm)
Δ Applicable PCB : Max. 510(L) x 460(W)(Standard)
Max. 610(L) x 460(W)(Option)
Δ Electrically Driven High Speed and High Precision
Δ Feeder
- Allows mixed use with an SM pneumatically driven feeder
Δ SMART Feeder
- The world's first feeder equipped with Auto Splicing and
Auto Loading functions
| Model | SM471PLUS | SM481PLUS | SM482PLUS |
| Numbers of Spindles | 10 Spindles × 2 Gantry | 10 Spindles × 1 Gantry | 6 Spindles × 1 Gantry |
| Placement Speed | 78000CPH(Optimum) | 40000CPH(Optimum) | 30000CPH(Optimum) |
| Placement Accuracy | ±50μm@μ±3σ | ±30μm@μ±3σ | ±30μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
If you are interested in this machine, please contact us:
| Contacts: Shanny True Mobile : +86 13670124230 Tele. : +86 0755 27428080 Add.:No.3,Road 3,Industrial Zone of Yangyong, Songgang Town, Bao'an District of Shenzhen,Guangdong, China. |

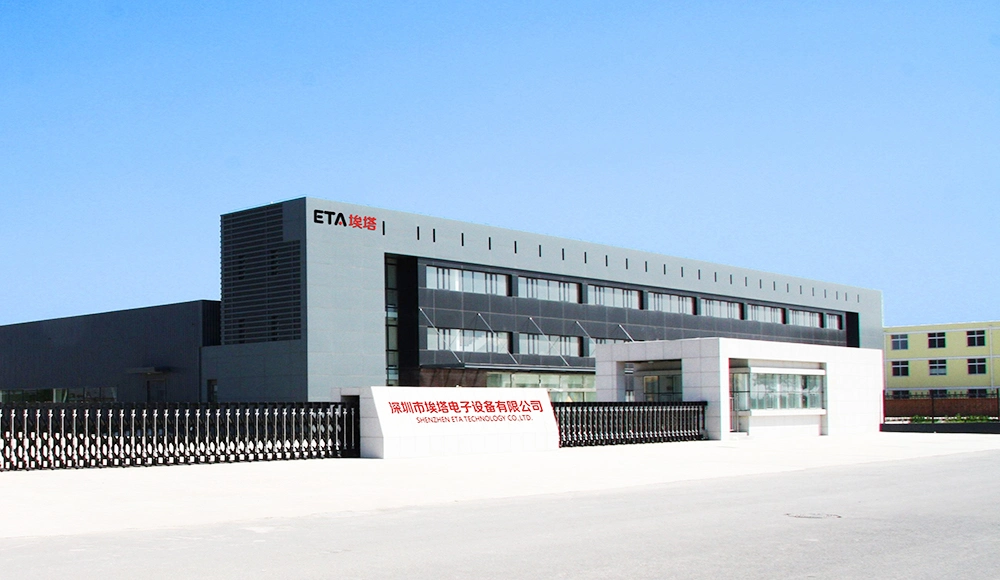

------About ETA------
ETA is the leading manufacturer for smt machines and solution with 23 years' experience in China. And we are aslo the only Chinese SMT supplier for Huawei factory in China.
Successful Experience:
Eta's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
For SMT factory setup,we can do for you:
1. We provide fulL SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT
------Our Service ------ ------Related Products------
More another machines what you need, please contact us, we can provide all SMT & DIP machines and solutions.
------Certificate & Feedback------
------FAQ------
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q: Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.
Q: Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
