This is CHM-861, a high-end pick and place machine of Hunan Charmhigh Electromechanical
Equipment Co., Ltd.
Vertical SMT Chm-861 Pick and Place Machine for PCB Board Assembly
CHM-861 Parameters
BrandCharmhighModelCHM-861
Positioning MethodFixed shooting &
Moving shooting
Feeding System100 feeders supported(maximal/8mm as standard)
Height of Components 12mm (maximal)Type of FeederNXT-compatible
electric feeder
Mounting Speed30000/cph (optimal)Number of Cameras8 fly cameras
+1 IC camera
+2 Mark cameras
Placement Head8pcsAuto Nozzles ChangeSupport (37 holes nozzle library)
Operating SystemWindows 7 system
+ Charmhigh self-developed software
Accuracy Rate±50μm@μ±3σ/chip
Compressed Air0.5~0.7MpaPower4.5KW
Thickness of PCB0.6~3.5mmPower SupplyAC380V
(50/60Hz, 3 phase)
Net weight1600KG
Dimensions(mm)1600(L)*1430(W)*1530(H)
Components Supported0201/0402/0603~5050/Diode&Triode/SOP/QFN/BGA/LED etc.
PCB Delivery3 pieces auto rails PCB delivery, PCB support
PCB Normal Size Supported(mm)450(L)*380(W)/600(L)*380(W)(optional)
Control ComputerBuilt-in industrial computer, coming with monitor, mouse, and keyboard
Vacuum SystemBuilt-in vacuum pump
Vision SystemFly camera :1 megapixel *8(high-speed camera);
IC camera:5 megapixels*1 (high-definition/HD camera);
Mark camera:1 megapixel*2.
Transmission SystemTHK ground ball screw, THK mute linear guide rail, Dual-screw Y-axis driven by motor, X-axis and Y-axis controlled by Panasonic A6 servo motor, flexible S-curve acceleration/deceleration, Z-axis capable of reset-detection.


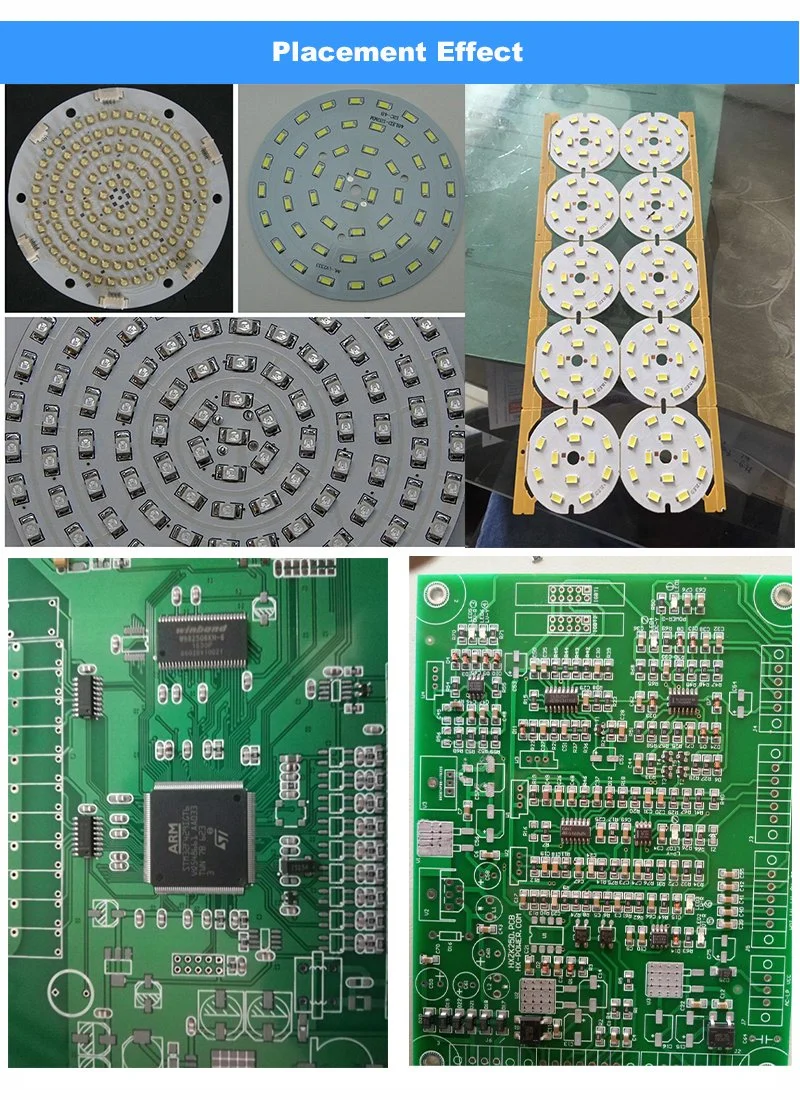

Our Customer
Vertical SMT Chm-861 Pick and Place Machine for PCB Board AssemblyVertical SMT Chm-861 Pick and Place Machine for PCB Board Assembly

Hunan Charmhigh Electromechanical Equipment Co., Ltd is the well-known manufacturer of high-end
SMT equipment in China.

The company is located in the Changsha High-tech Development Zone,
covering a total area of 3600 square meters.

As a professional modern science and technology enterprise capable of both R&D,
production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.

Different series of multi-head full-automatic SMT machines have been developed and
manufactured by Charmhigh to meet various practical production needs.

In accordance with the business philosophy of "Customer First, Innovation Paramount",
Charmhigh has won the hearts of thousands of customers all over the world.


Vertical SMT Chm-861 Pick and Place Machine for PCB Board AssemblyVertical SMT Chm-861 Pick and Place Machine for PCB Board AssemblyVertical SMT Chm-861 Pick and Place Machine for PCB Board AssemblyVertical SMT Chm-861 Pick and Place Machine for PCB Board Assembly
Vertical SMT Chm-861 Pick and Place Machine for PCB Board Assembly
Our Service
This SMT machine will be tested well before ship out.
Tools and manuals are complete included in the package.

Each machine 100% test well before ship out.
Support  as well as a long term factory price supply.

We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
